| Nazwa marki: | Sinuo |
| Numer modelu: | SN552C-1000L |
| MOQ: | 1 |
| Cena £: | Customized |
| Warunki płatności: | T/T |
| Zdolność do zaopatrzenia: | 1 sets/month |
IEC62133 Explosion-proof Test Chamber 1000L for Lithium Battery Safety Testing
Complied Standards & Clauses
Conforms to UL 1662:2012, UL 2056: 2012, UN38.3(2012), IEC62133-2012, IEC 62281: 2006, IEC 60086: 2007.
Equipment overview
The SN552C-1000L Explosion-Proof Test Chamber is designed for safe testing of batteries under extreme conditions like overcharging, short-circuit, or thermal runaway. Constructed with double-layer steel and integrated with explosion relief, smoke exhaust, and LED lighting, this chamber protects personnel and the lab environment during hazardous battery testing.
Ideal for R&D centers, battery manufacturers, certification labs, and compliance testing, this unit is built in accordance with international safety standards.
Application Scenarios:
Lithium-ion battery pack safety testing
Overcharge, discharge, puncture, and fire tests
Explosion containment for EV, drone, and power tool batteries
Compliance testing with UN38.3, IEC62133, and more
Technical Parameters
| No | Project name | Specifications | |
| 1.01 | Product name | Explosion-proof test chamber | |
| 1.02 | Product model | SN552C-1000L | |
| 1.03 | Inner box size | W1000 X D1000 X H1000 mm; (can be made on request) | |
| 1.04 | Inner box material | SUS#201 stainless steel, thickness 3.0mm, external reinforcement; | |
| 1.05 | Outer box size | W1200 X D1200 X H1500mm; (subject to design) | |
| 1.06 | Box middle spacer | Thermal insulation layer in the middle of the inner and outer boxes is 100mm | |
| 1.07 | Outer box material | 1.5MM thick A3 steel plate and painted, | |
| 1.08 | Bottom of inner box | The test area is equipped with a piece of insulating Teflon, which is effectively flame-retardant and corrosion-resistant, and is easy to clean to avoid external short circuits. | |
| 1.09 | Control panel security design | The control panel is built-in, and the touch screen and buttons will not be mistakenly pressed or collided by external objects or bodies. It is safer. | |
|
1.10 |

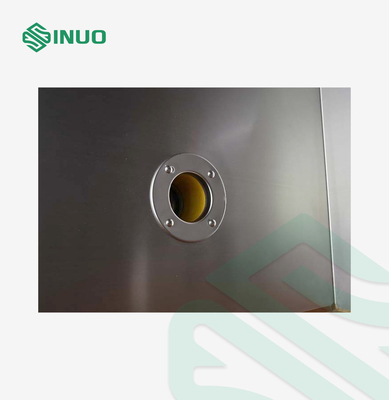

Lead hole |
Two pcs φ50mm test holes are reserved on one side of the equipment for relevant test lines to pass through. |
|
|
1.11 |
Box door |
High-strength hinges are used to fix the door, and at least 2 sets of explosion-proof locks can be installed on the door to fix it. |  |
Details
