EV Battery Testing Equipment with 300kN Pressure Range and Box-Type Structure for SAE J2464 Compliant Crush and Nail Penetration Tests

EV Battery Testing Equipment with 300kN Pressure Range and Box-Type Structure for SAE J2464 Compliant Crush and Nail Penetration Tests

Nazwa marki:	Sinuo
Numer modelu:	SN554B-30T
MOQ:	1
Cena £:	Customized
Warunki płatności:	T/T
Zdolność do zaopatrzenia:	1 zestaw/miesiąc

Szczegółowe informacje

Opis produktu

Szczegółowe informacje

Miejsce pochodzenia:

Chiny

Orzecznictwo:

Calibration Certificate (Cost Additional)

Rozmiar baterii:

300*300*250mm

Masa baterii:

18kg-30kg

Przestrzeń testowa:

1000 × 1000 × 1000 mm (szer. * gł. * wys.)

Wymiary sprzętu:

1200×1500×1850 mm

Zmiażdż prędkość akupunktury:

0,1-83 mm/s (regulowane)

Struktura wyposażenia:

Struktura typu skrzynki

Zakres ciśnienia:

1 ~ 300 kN

przemieszczenie:

0 ~ 300 mm

Szczegóły pakowania:

Inny

Możliwość Supply:

1 zestaw/miesiąc

Podkreślić:

300kN Pressure Range EV Battery Testing Equipment

Box-Type Structure Battery Crush Test Chamber

SAE J2464 Compliant Nail Penetration Test Chamber

Opis produktu

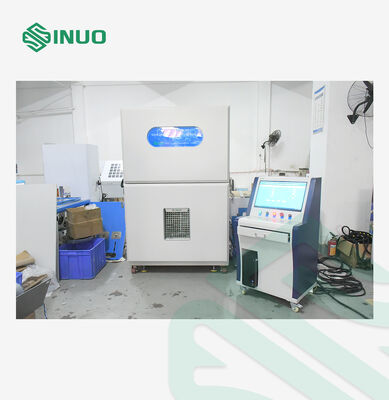

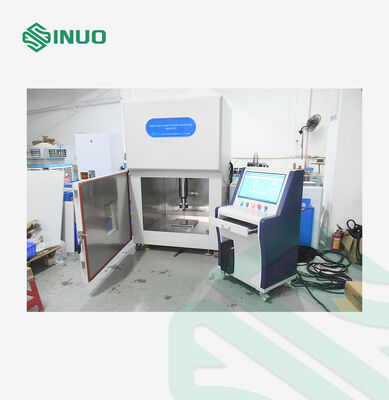

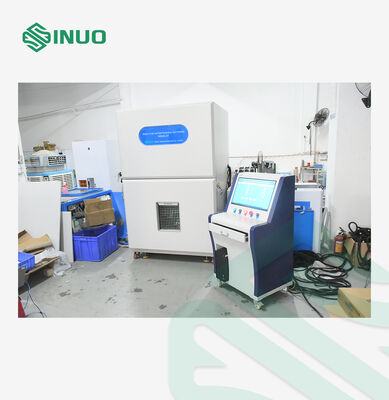

EV Battery Testing Equipment for Battery Crush and Nail Penetration 300kN

Advanced testing equipment designed for comprehensive EV battery safety evaluation, featuring crush and nail penetration testing capabilities with 300kN maximum force.

Compliance Standards

Conforms to SAE J2464 Standard (Clause 4.3.3.1: Penetration Test; Clause 4.3.6.1: Crush Test), AIS 038 crush test in page no. 79 of 106 cl.no. 3.2, Nail penetration test in page no. 101 of 106 cl.no. 3.3.2 (a), IEC62133-2012, ISO 12405-4:2018, and other relevant standards.

Equipment Overview

Voltage acquisition function automatically collects battery voltage changes during testing and stops when voltage reaches zero
Flexible testing modes: pressure, deformation, and voltage control with customizable stopping conditions
Real-time monitoring and display of test speed, force, displacement, temperature, and voltage

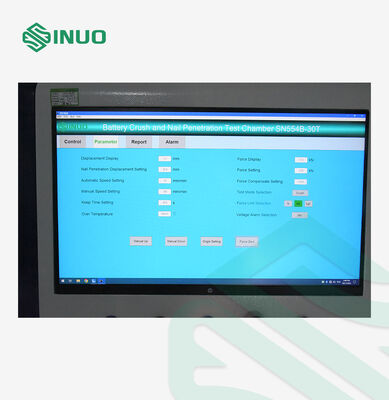

Windows-based computer operating system with comprehensive data recording, saving, comparison, and tracking functions
Dedicated test control motherboard for simultaneous recording of force, displacement, and voltage
Multiple test condition combinations with automatic stopping when any set condition is met
Real-time data export and report generation capabilities
Voltage signal control for precise test termination

Technical Specifications

User Battery Cell Size	Maximum size: 300300250mm, Weight: 18kg-30kg
Test Space	100010001000mm (width * depth * height)
Dimensions	120015001850mm (width * depth * height, subject to actual design)
Equipment Structure	Box-type structure
Control Method	Remote computer control, distance ≥10m
Drive Method	Servo Motor + Electric cylinder drive
Pressure Range	1～300kN, sensor maximum range 306kN
Pressure Accuracy	±1% FS
Crush/Acupuncture Speed	0.1-83mm/s (adjustable)
Displacement	0～300mm
Steel Needle Specifications	Sizes: Φ3mm, Φ4mm, Φ5mm, Φ6mm, Φ8mm, Φ20mm Length: 200mm Material: Heat Treated Steel Angle: 45°-60° Quantity: 2 each

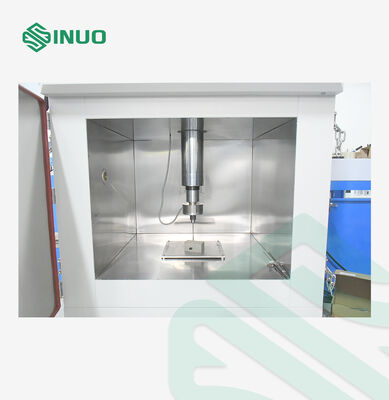

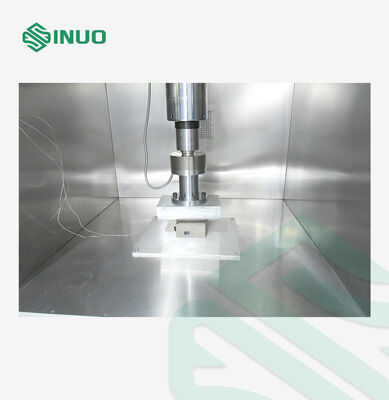

Crush Head Options	R75250mm semi-cylinder, 2R75250mm semi-cylinder, and flat crush head
Needle Fixture
Temperature Acquisition	Range: 0-1000℃, Resolution: 0.1℃, Accuracy: ±0.5℃, 2 channels
Voltage Acquisition	Range: 0-100V, Accuracy: ≤±0.5% FS, Resolution: 10mV, 1 channel
Power Requirements	25KW, 380V power supply
Weight	Approximately 800kg
