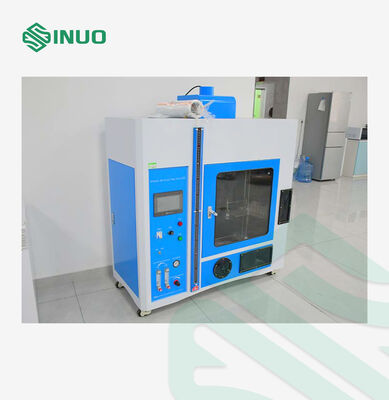

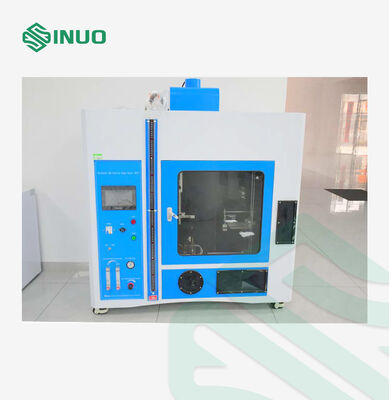

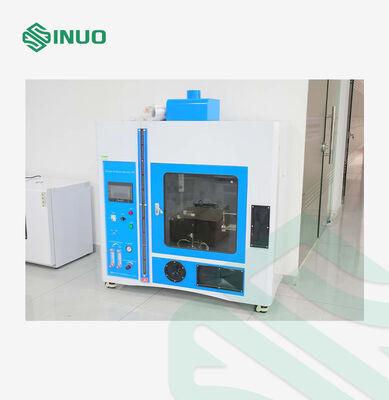

Horizontal Vertical Flame Test Chamber Compliant With IEC60695 UL94 Standards Featuring PLC and Touch Screen Control and 50W 500W Dual Power

Horizontal Vertical Flame Test Chamber Compliant With IEC60695 UL94 Standards Featuring PLC and Touch Screen Control and 50W 500W Dual Power

Nazwa marki:	Sinuo
Numer modelu:	SN771
MOQ:	1
Cena £:	Customized
Warunki płatności:	T/T
Zdolność do zaopatrzenia:	30 zestawów/miesiąc

Szczegółowe informacje

Opis produktu

Szczegółowe informacje

Miejsce pochodzenia:

Chiny

Orzecznictwo:

Calibration Certificate (Cost Additional)

Stosowana norma:

IEC 60695-11-3 itp.

Metoda kontroli:

PLC i ekran dotykowy

Przepływ gazu 50 W:

105±5ml/min

Przepływ gazu 500 W:

965±30ml/min

Kąt testu płomienia 50 W:

0°,45°

Kąt testu płomienia 500 W:

20°

Czas spalania:

0-9999X0.1S, można ustawić

Aplikacje płomienia:

0-9999 razy, można ustawić

Szczegóły pakowania:

Obudowa ze sklejki

Możliwość Supply:

30 zestawów/miesiąc

Podkreślić:

IEC60695 UL94 Flame Test Chamber

PLC Control Flame Test Chamber

50W 500W Flammability Testing Equipment

Opis produktu

Flammability Testing Equipment: Horizontal Vertical Flame Test Chamber

Compliant with IEC60695 and UL94 standards for comprehensive safety testing of materials.

Compliant Standards

UL94
IEC60695-11-2
IEC60695-11-3
IEC60695-11-4
IEC60695-11-10
IEC60695-11-20

Equipment Overview

This Horizontal and Vertical Flammability Tester evaluates the ignitability and flame propagation characteristics of plastic and non-metallic materials used in electrical and electronic products. The equipment simulates small open flames during early fire stages, helping manufacturers assess fire hazard potential in household appliances, IT equipment, audio/video devices, and similar products.

Applications

Plastic materials and non-metallic solid materials
Foam plastics with density ≥ 250kg/m³ (tested per ISO845)
Horizontal and vertical burning tests for comparative combustion characteristics

Key Features

Integrated inlet ignition system with 0.1-second flame delay for stable ignition
Matte black background for optimal flame visibility and contrast
High-precision digital timers for accurate flame application and afterflame/afterglow measurement

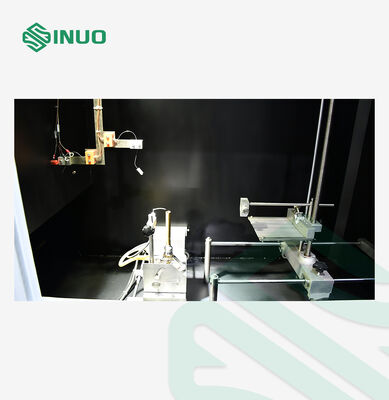

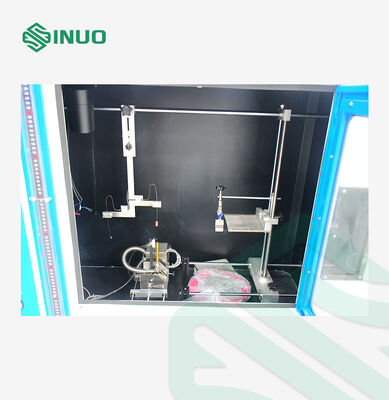

Multi-functional flame measuring gauge for adjustable flame length and positioning
Full stainless steel enclosure for durability and corrosion resistance
Large observation window for safe and clear test monitoring
Compact design incorporating international best practices
Compliance with multiple global safety testing standards

Technical Parameters

Parameter	Specification
Test Flame Calibration	Distance between bunsen burner port to temperature measuring copper block: 50W: 10±1 mm; 500W: 55±1 mm
Thermocouple	American original Omega φ0.5 armour nickel-chromium/nickel aluminum wire K-Thermocouple, temperature resistance 1100°
Temperature Rise Time	From 100±2° to 700°±3°: 50W: 44±2S; 500W: 54±2S
Flame Height	50W: 20±2mm (no internal/external flame); 500W: Inner flame: 40±2mm, Outer flame: 125±10mm
Temperature Measuring Copper Head	50W: Ф5.5mm±0.01mm, weight before drilling 1.76±0.01g; 500W: Ф9mm±0.01mm, weight before drilling 10±0.05g
Back Pressure Water Column Height	50W: 10mm; 500W: 125±5 mm
Test Angle	50W: 0°, 45°; 500W: 20°
Working Voltage	120V/60Hz
Power/Grade	50W and 500W double power switching
Control Operation Mode	PLC control, 7 inch color touch screen operation, with infrared remote controller
Blast Burner Standard	IEC60695-11-3/IEC60695-11-4/10, UL94, etc. inner diameter: Φ9.5±0.3mm, length: 100mm, brass construction
Gas Pressure	0.1MPa
Gas Flow	50W: 105±5ml/min or 18±1mm; 500W: 965±30ml/min or 117±3 mm, flow meter adjustment
U Type Pressure Gauge Back Pressure	50W: 10mm; 500W: 125±5 mm
Burning Time	0-9999X0.1S (presettable)
Burning Times	0-9999 times (presettable)
Residual Flame/Residual Glow	0-9999X0.1S (displayable)
